รายละเอียดสินค้า:
|
| ความจุที่มีอยู่: | 100Ah / 205Ah / 300Ah | การจัดเก็บพลังงานทั้งหมด: | 2560Wh / 5248Wh / 7680Wh | 5120Wh / 10496Wh / 15360Wh |
|---|---|---|---|
| แรงดันไฟฟ้าที่ได้รับการจัดอันดับ: | 25.6V | 51.2V | ช่วงแรงดันใช้งาน: | 21.6V-29.2V | 43.2V-58.4V |
| กระแสไฟชาร์จสูงสุด: | 100A(100Ah); 200A(205Ah/300Ah) | กระแสจำหน่ายสูงสุด: | 100A(100Ah); 200A(205Ah/300Ah) |
| ปล่อยแรงดันไฟฟ้าตัด: | 21.6V | 43.2V | แรงดันประจุลอยตัว: | 28.8V | 57.6V |
| วงจรชีวิต: | 6,000-8,000 รอบที่ 80% DOD | อุณหภูมิในการทำงาน: | ปล่อย: -20 ℃ ~ 60 ℃; ค่าใช้จ่าย: 0 ℃ ~ 55 ℃ |
| การปลดปล่อยสูงสุด: | ต่อเนื่อง 200A (10kW), สูงสุด 400A (20kW) | ประเภทหน้าจอ: | จอแอลซีดีแบบสัมผัสสามเหลี่ยม |
| เน้น: | 51.2V 300Ah LiFePO4 battery,high power home battery storage,medical device emergency power source |
||

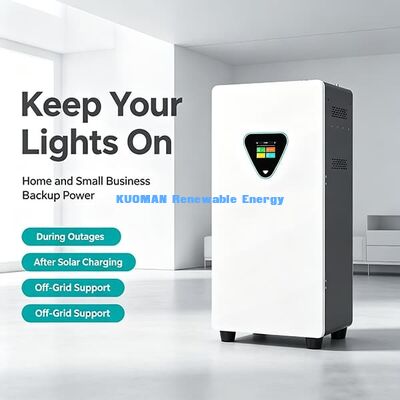

Mobile LiFePO4 Home & Commercial Energy Storage Battery, 25.6V / 51.2V Series (100Ah/205Ah/300Ah). Our vertical all-in-one lithium iron phosphate energy storage battery is designed for residential backup, solar off-grid, and small commercial power storage.![]()
| Model Spec | 25.6V Series | 51.2V Series |
|---|---|---|
| Available Capacity | 100Ah / 205Ah / 300Ah | 100Ah / 205Ah / 300Ah |
| Total Energy Storage | 2560Wh / 5248Wh / 7680Wh | 5120Wh / 10496Wh / 15360Wh |
| Rated Voltage | 25.6V | 51.2V |
| Working Voltage Range | 21.6V-29.2V | 43.2V-58.4V |
| Max Charge / Discharge Current | 100A(100Ah); 200A(205Ah/300Ah) | 100A(100Ah); 200A(205Ah/300Ah) |
| Discharge Cut-off Voltage | 21.6V | 43.2V |
| Floating Charge Voltage | 28.8V | 57.6V |
| Cycle Life | 6000-8000 Cycles @80% DOD, retain 80% capacity after long-term use | |
| Operating Temperature | Discharge: -20℃ ~ 60℃; Charge: 0℃ ~ 55℃ | |
| Peak Discharge Support | Continuous 200A (10kW), Peak 400A (20kW) for heavy appliances | |
| Screen & Monitor | Triangle touch LCD, real-time display voltage, current, SOC, single cell status | |
